Jetpack compose ​

roadmap ​

https://foso.github.io/Jetpack-Compose-Playground/cookbook/loadimage/

声明式 UI VS 命令式 UI ​

https://rengwuxian.com/jetpack-compose-3/

https://developer.android.com/jetpack/compose/tutorial?hl=zh-cn

https://developer.android.com/jetpack/compose/documentation?hl=zh-cn

kotlin
var text = "Hello"

Column {
    Text(text)
    Image()
}

数据变，视图也会变，所谓的自动订阅值的是 Compose 通过订阅机制来自动更新，无需要像 Java 那样命令式的更新试图，用了很多 Kotin 的特性

KMM ​

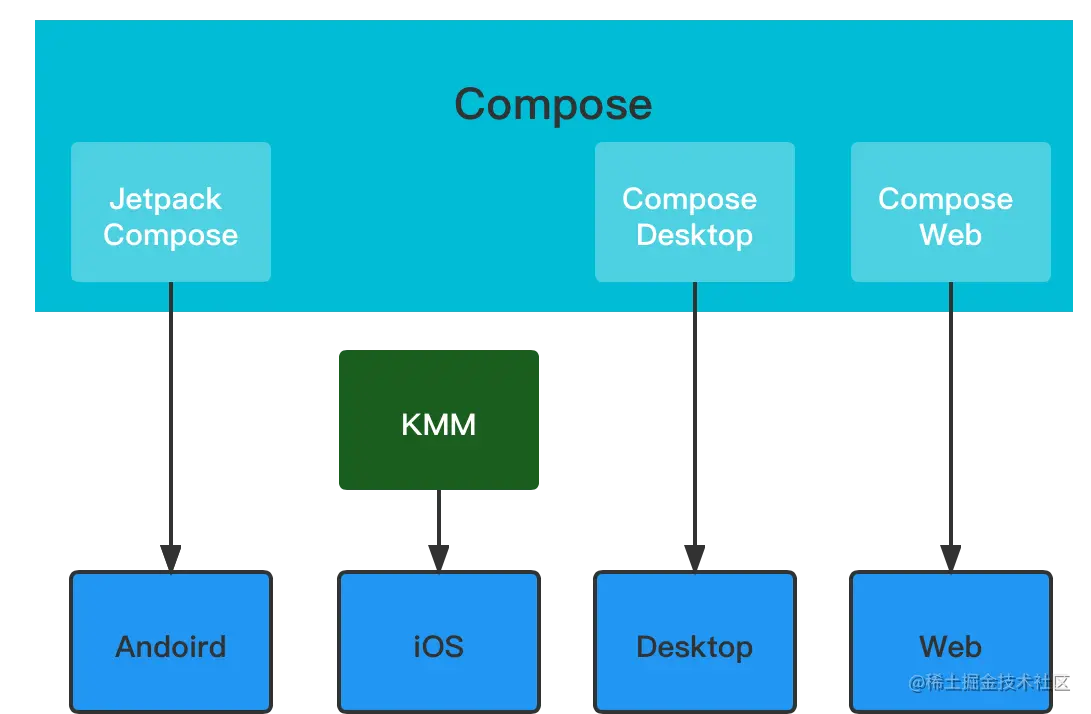

Compose 相信大家不会陌生，其实 Compose 也可以分两部分看待， Jetpack Compose 和 Compose Multiplatform：

  • 由 Android 官方维护的 Jetpack Compose
  • 由 JetBrains 维护的 compose-jb实现的 Compose Multiplatform


iOS 还处于 alpha

web 处于 experiment

Preview ​

kotlin
@Preview
@Composable
fun Greeting(name: String) {
    Text(text = "Hello $name!")
}

基础组件 ​

  • Alertdialog
  • Button
  • Card
  • Icon
  • Image
  • Text
  • TextField

布局组件 ​

- Box
- Row
- Column
- Spacer
- TopAppBar

Dagger Hilt ​

架构 ​

架构1 ​

架构：MVI

inject：dagger hilt

network：retrofit

data：Room 、data store

task：work manager

navigation：compose-destinations ，这是国外一个开源封装库，简化了 compose navigation 的使用

Lifecycle + livedata + viewmodel 好用

架构2 ​

Android 原生 Kotlin(Coroutines/serialization),

Jetpack(Compose/ViewModel/Room/Hilt/Navigation) 一把梭

跨端项目(含桌面) Flutter 状态管理 Riverpod

架构3 ​

组件化+模块化（ ARouter +

网络请求 Kotlin+协程+Flow+Retrofit

Jetpack+MVVM 架构

ROOM

ViewBinding&DataBinding

热更 tinker

插件化 shadow

日志组件 mars 里的 xlog

sp MMKV

webview 腾讯 X5 内核

composition and recomposition ​

合成和重组

mutableStateOf() ​

Compose 会观察值的所有更改并触发重组以更新界面

kotlin
var amountInput: MutableState<String> = mutableStateOf("0")
var amountInput = mutableStateOf("0")


TextField(
   value = amountInput.value,
   // onValueChange = {},
   onValueChange = { amountInput.value = it },
)

Compose 会跟踪每个读取状态 value 属性的，并在其 value 更改时

使用 remember 函数保存状态 ​

避免重组后值被清空

kotlin
@Composable
fun EditNumberField() {
   var amountInput by remember { mutableStateOf("") }
   TextField(
       value = amountInput,
       onValueChange = { amountInput = it },
   )
}

状态提升 (state hoisting) ​

其他可组合项需要访问可组合项中的状态时，您需要考虑将可组合函数中的状态提升或提取出来

状态提升是一种将状态上移以使组件变为无状态的模式。

最普适的架构原则是：分离关注点和通过模型驱动界面。

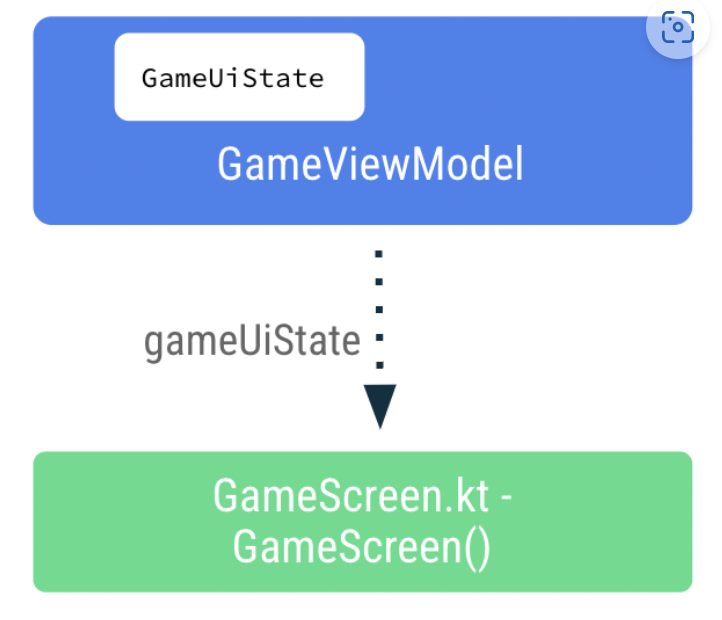

ViewModel ​

kotlin
import androidx.lifecycle.ViewModel
import kotlinx.coroutines.flow.MutableStateFlow

class GameViewModel : ViewModel() {
}

data class GameUiState(
   val currentScrambledWord: String = ""
)


// Game UI state
private val _uiState = MutableStateFlow(GameUiState())
val uiState: StateFlow<GameUiState> = _uiState.asStateFlow()

StateFlow 可观察数据流，可发出当前状态更新和新状态更新。

其 value 属性反映了当前状态值。如需更新状态并将其发送到数据流


https://github.com/google-developer-training/basic-android-kotlin-compose-training-unscramble/blob/main/app/src/main/java/com/example/unscramble/ui/GameViewModel.kt

Navigation ​

​

kotlin
enum class CupcakeScreen() {
    Start,
    Flavor,
    Pickup,
    Summary
}
kotlin
@Composable
fun CupcakeApp(
    viewModel: OrderViewModel = viewModel(),
    navController: NavHostController = rememberNavController()
) {
    // Get current back stack entry
    val backStackEntry by navController.currentBackStackEntryAsState()
    // Get the name of the current screen
    val currentScreen = CupcakeScreen.valueOf(
        backStackEntry?.destination?.route ?: CupcakeScreen.Start.name
    )

    Scaffold(
        topBar = {
            CupcakeAppBar(
                currentScreen = currentScreen,
                canNavigateBack = navController.previousBackStackEntry != null,
                navigateUp = { navController.navigateUp() }
            )
        }
    ) { innerPadding ->
        val uiState by viewModel.uiState.collectAsState()

        NavHost(
            navController = navController,
            startDestination = CupcakeScreen.Start.name,
            modifier = Modifier.padding(innerPadding)
        ) {
            composable(route = CupcakeScreen.Start.name) {
                StartOrderScreen(
                    quantityOptions = DataSource.quantityOptions,
                    onNextButtonClicked = {
                        viewModel.setQuantity(it)
                        navController.navigate(CupcakeScreen.Flavor.name)
                    },
                    modifier = Modifier
                        .fillMaxSize()
                        .padding(dimensionResource(R.dimen.padding_medium))
                )
            }
            composable(route = CupcakeScreen.Flavor.name) {
                val context = LocalContext.current
                SelectOptionScreen(
                    subtotal = uiState.price,
                    onNextButtonClicked = { navController.navigate(CupcakeScreen.Pickup.name) },
                    onCancelButtonClicked = {
                        cancelOrderAndNavigateToStart(viewModel, navController)
                    },
                    options = DataSource.flavors.map { id -> context.resources.getString(id) },
                    onSelectionChanged = { viewModel.setFlavor(it) },
                    modifier = Modifier.fillMaxHeight()
                )
            }
            composable(route = CupcakeScreen.Pickup.name) {
                SelectOptionScreen(
                    subtotal = uiState.price,
                    onNextButtonClicked = { navController.navigate(CupcakeScreen.Summary.name) },
                    onCancelButtonClicked = {
                        cancelOrderAndNavigateToStart(viewModel, navController)
                    },
                    options = uiState.pickupOptions,
                    onSelectionChanged = { viewModel.setDate(it) },
                    modifier = Modifier.fillMaxHeight()
                )
            }
            composable(route = CupcakeScreen.Summary.name) {
                val context = LocalContext.current
                OrderSummaryScreen(
                    orderUiState = uiState,
                    onCancelButtonClicked = {
                        cancelOrderAndNavigateToStart(viewModel, navController)
                    },
                    onSendButtonClicked = { subject: String, summary: String ->
                        shareOrder(context, subject = subject, summary = summary)
                    },
                    modifier = Modifier.fillMaxHeight()
                )
            }
        }
    }
}

private fun cancelOrderAndNavigateToStart(
    viewModel: OrderViewModel,
    navController: NavHostController
) {
    viewModel.resetOrder()
    navController.popBackStack(CupcakeScreen.Start.name, inclusive = false)
}

导航逻辑不会向应用中的各个屏幕公开。所有导航行为都在 NavHost 中处理。

参考 ​

TextField | 你好 Compose

Asynchronous Flow | Kotlin

https://developer.android.com/jetpack/compose/state?hl=zh-cn
